XFT-High strength wet curtain

★性能特點

◆ 波紋紙特殊處理，結構強度高，耐腐蝕，使用周期長。

◆ 具有優良的滲透吸水性，可以保證水均勻淋透整個濕簾墻。

◆ 特定的立體空間結構，為水與空氣的熱交換提供了*大的蒸發表面積。

◆ 外框有鋁合金與鍍鋅板可選。

      XFT濕簾降溫系統的降溫過程是在基核心-XFT紙墊內完成的。在波紋的纖維紙表面有層薄薄的水膜，當室外干熱空氣被風機抽吸穿過紙墊時，水膜上的水會吸收空氣中的熱量進而蒸發在水蒸氣，這樣經過處理后的涼爽濕潤的空氣就進入室內了。這自然的過程猶如風吹過水面一樣。“濕簾-風機”的縱向通風降溫組合是*經濟、有效的溫室夏季降溫措施。

◆Corrugated paper has high intensity structure,corrosion resistant,long service life.

◆Fine percolating and absorbing water to ensure water drip wet the wall.

◆Specific stereoscopic structre.It can provide the largest evaporation surface area for heating exchanging between weater and air.

◆Outer fname can be alternative of aluminum alloy and galvanized boand.

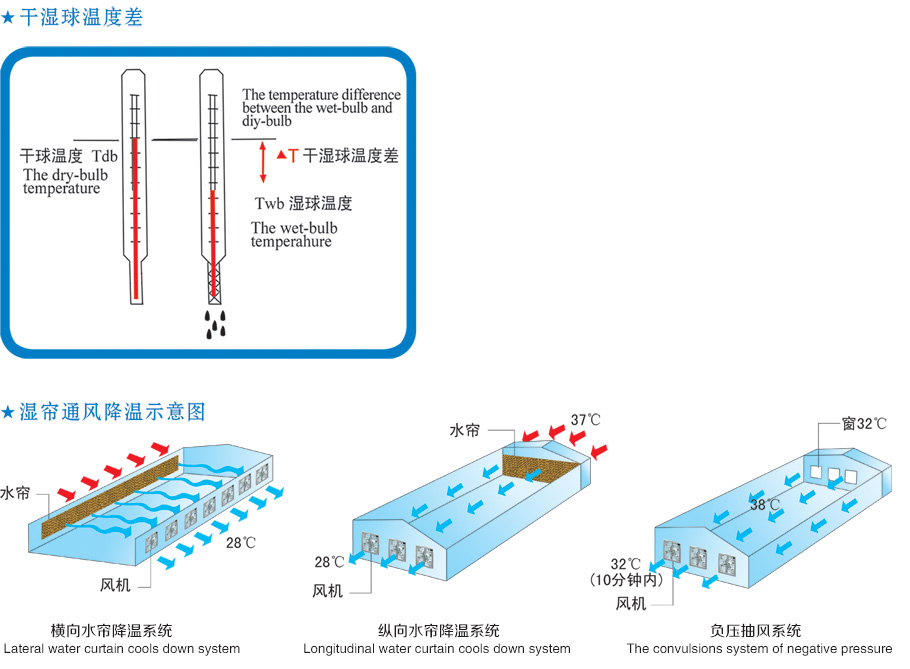

    XFT cooling pad system is finished in the core- paper packing plate .There is a thin water

film on the surface of corrugated fiber paper , when the dry heating air outside is crossing

the paper packing plate absorbed by wind machine , the water on the thin water film can absorb the heat of air and evaporate into steam , then the cool and humid air can enter the room after treatment . The nature processing is just like wind blowing on the water level .

Ventilatim fan and cooling pad, best efficient and economic temperature drop measure in summer .
